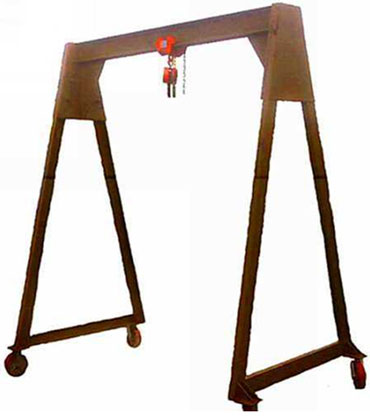

The hoisting device with manual drive PU-03
The hoisting device has different modifications by hoisting capacity 0,2; 0,5; 1 tones.
Purpose of hoisting device
PU-03 is intended to hoist, lower and transport cargos for short distances within definite area of an enterprise and execute different operations. For example:
- Mechanized removal of molds, die-molds for well rings.
- Transporting of cassette molds (as empty, as filled) through the shop area.
- Loading of ready products into the truck.
The principal data and characteristics (indicated for hoisting device by hoisting capacity 0,5 tone)
Loading capacity, kg |
500 |
Overall height, m |
2,7 |
Hoisting height, m |
2,4 |
Overall length, m |
2,4 |
Crane span, m |
2 |
Crane base, m |
1,5 |
The unit can be equipped with winch by domestic or import production. It makes the operation of the form removal of cassette molds easier, and is very useful at the manufacturing of the well rings and other elements of reinforced concrete products.
|
